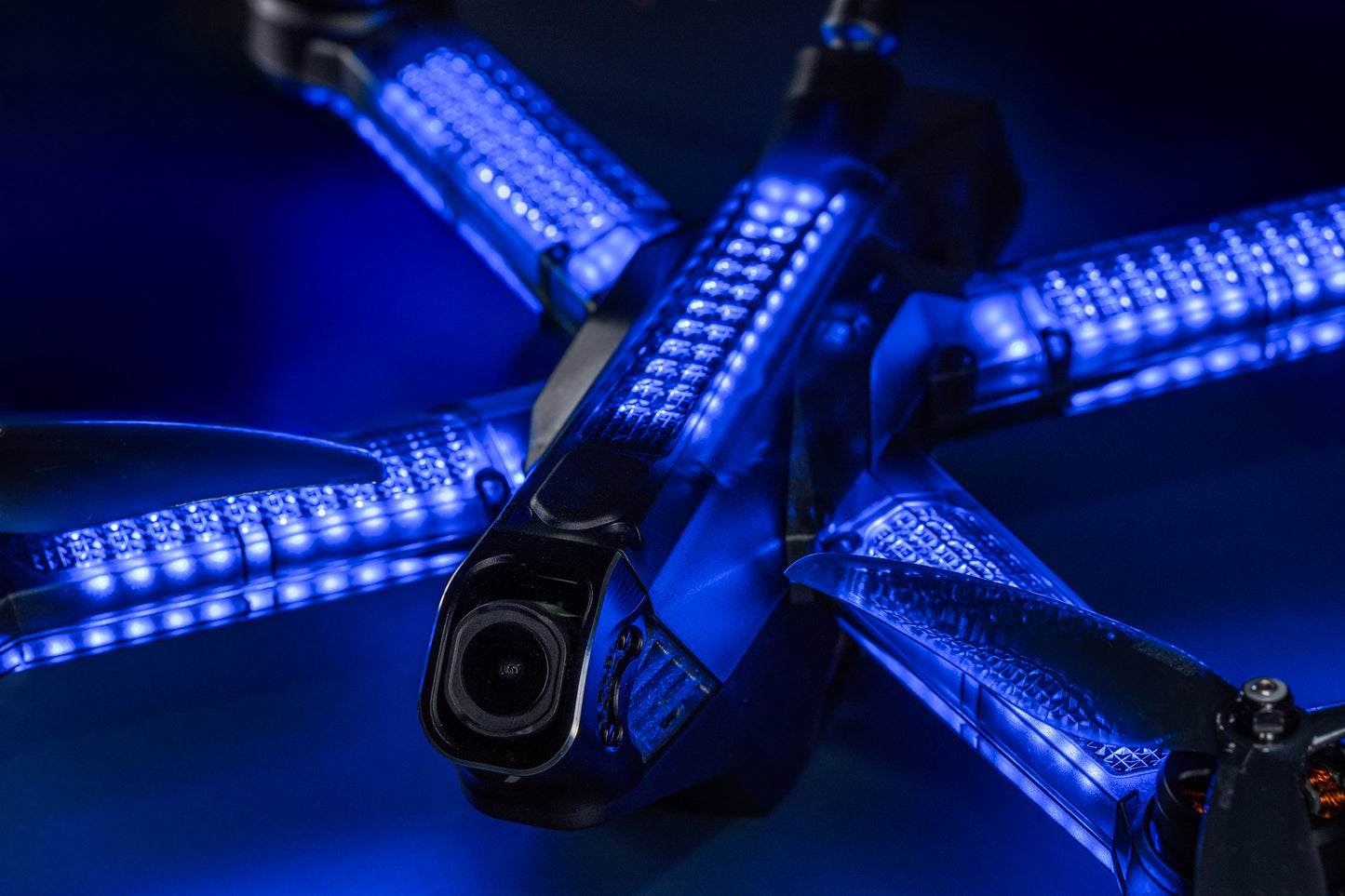

DPX7 Pro Class Racing Drone All in One KIT

“Full Assembly Kit – No Additional Parts Required”

" NO battery"

Electronics

• ZEX H743 FC
• ZEX 80A ESC
• DPX7 2808 1350kv motor
• Foxeer Nano GPS
• Radiomaster ELRS Nano Receiver RP1 V2
• DJI O4 pro or HDzero VTX Race3
• Truerc Stubby Antenna
• Dogcom 150C-2200mah (Required)


DJI O4 Version

• Antenna-LHCP
• VTX- DJI O4 PRO

HDzero Version

• Antenna-RHCP
• VTX-HDzero Race V3
• Camera- HDzero Nano 90 V2

3D Parts

• Camera mount damper- 2pcs (HDzero,DJI)
• Stubby antenna and Type-C mount- 1pc
• Receiver Tail mount- 1pc
• Tail mount LED fixer- 1pc
• Multi Receiver antenna mount-1pc
• Ventilation Gill- 2pcs (left and right)
• DPX7 Display Stand- STL file

Parts list

• Body Shell- Top- 1pc
• Body Shell-  Bottom- 1pc
• Arm Shell- Top- 4pcs
• Arm Shell- Bottom- 4pcs
• Bottom Frame- 1pc
• Middle plate- 1pc
• Top plate- 1pc
• Arm plate- 4pcs (2-type)
• Aluminium Head mount- 1pc
• 5v Heat sink Fan with wire-1pc
• Led controller with Button- 1pc
• Led plate- 9pcs
• Small End leds- 5pcs
• UFL TO SMA antenna cable ( DJI-2Way)
• XT60EW- 1pc
• 90degree Type-C  Extending cable- 1pc
• 250x15 Battery strap- 1pc
• Non slip Battery pad- 2pcs
• 30mm Stand off- 4pcs
• Silicon damper and Orings
• Led wires- 14pcs

Bolts List

• Shell Bolt- Socket head M2.5- 10mm- 20pcs
• Bottom Head- Round head M3- 10mm- 2pcs
• Bottom Tail Receiver mount- Round head M2.5- 10mm- 2pcs
• Top Head- Round head M3- 8mm - 2pcs
• Top plate- Round head M3- 6mm- 2pcs
• Top plate-Counter sunk M3- 8mm- 4pcs
• Antenna 3D part and Tail 3D parts Bonding- Set screw M3- 20mm-1pc
• Motor Bolt- Round head M3-8mm- 16pcs
• Vent and tail 3D parts- Counter sunk Self tapping M3- 10mm- 6pcs
• HDzero VTX- Counter sunk M3- 15mm- 4pcs
• DJI O4 PRO- Counter sunk M2- 15mm- 4pcs
• Bottom plate and Arm- Counter sunk M3- 11mm- 8pcs
• Bottom plate and Stand off- Counter sunk M3- 8mm- 4pcs
• FC and ESC Stack- Counterunk M3- 30mm- 4pcs
• XT60EW- Counter sunk M2.5- 8mm- 2pcs
• M3 plastic nuts- 8pcs
• Camera mount bolt M2- 5mm- 4pcs
